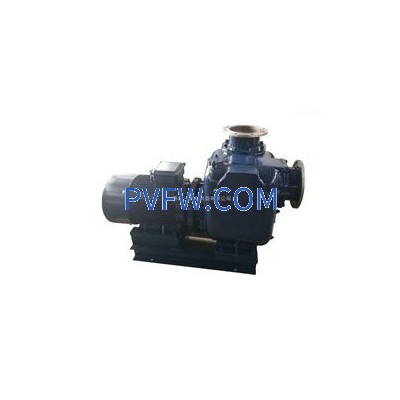

AYZS自吸泵

一、AYZS自吸泵厂家产品特点：AYZS工业自吸泵可采用分体式与直联式及便拆式三种结构，按类型又分为清水型、污水型两大系列，于国内同类产品相比，具有结构简单紧凑、振动小、自吸性能好、排污能力强、高效节能、使用

产品信息

产地中国 » 上海

结算币种人民币

所属分类 AYZS自吸泵

上架时间 2022-03-24

立即咨询

电话咨询收藏产品

正品保障

快速交付

专业支持

产品介绍

详细规格

产品选型（）

NO.	型号	流量 (m³/h)	H (m)	N (r/min)	P (kw)	η (%)
1	100AYZS80-10-4.2-4	80	10	1450	4	68.1
2	100AYZS100-12-5.5-4	100	12	1450	5.5	74.3
3	100AYZS100-15-7.5-4	100	15	1450	7.5	68.1
4	100AYZS100-20-11-4	100	20	1450	11	66.1
5	100AYZS100-25-15-4	100	25	1450	15	60.6
6	100AYZS100-30-18.5-4	100	30	1450	18.5	58.9
7	100AYZS100-40-22-2	100	40	2900	22	66.1
8	100AYZS100-50-30-2	100	50	2900	30	60.6
9	100AYZS100-60-37-2	100	60	2900	37	63.1
10	100AYZS100-70-45-2	100	70	2900	45	60.6
11	100AYZS100-80-45-2	100	80	2900	45	64.6
12	150AYZS150-10-7.5-4	150	10	1450	7.5	68.1
13	150AYZS150-15-11-4	150	15	1450	11	69.7
14	150AYZS150-20-15-4	150	20	1450	15	68.1
15	150AYZS150-25-18.5-4	150	25	1450	18.5	69
16	150AYZS150-30-22-4	150	30	1450	22	69.7
17	150AYZS150-35-30-4	150	35	1450	30	63.6
18	150AYZS150-40-37-4	150	40	1450	37	63.6
19	150AYZS150-50-45-4	150	50	1450	45	67.2
20	150AYZS150-40-37-2	150	40	2900	37	63.1
21	150AYZS150-50-45-2	150	50	2900	45	60.6
22	150AYZS150-65-55-2	150	65	2900	55	64.4
23	150AYZS150-80-75-2	150	80	2900	75	62.3
24	150AYZS200-11-11-4	200	11	1450	11	68.1
25	150AYZS200-15-15-4	200	15	1450	15	68.1
26	150AYZS200-18-18.5-4	200	18	1450	18.5	66.3
27	150AYZS200-22-22-4	200	22	1450	22	68.1
28	150AYZS200-27-30-4	200	27	1450	30	65.4
29	150AYZS200-32-37-4	200	32	1450	37	62.8
30	150AYZS200-40-45-4	200	40	1450	45	63.7
31	150AYZS200-50-55-4	200	50	1450	45	65.2
32	150AYZS200-40-45-2	200	40	2900	45	64.6
33	150AYZS200-50-55-2	200	50	2900	55	66.1
34	150AYZS200-65-75-2	200	65	2900	75	63
35	150AYZS200-80-90-2	200	80	2900	90	64.6
36	150AYZS250-50-55-4	250	50	1450	55	69.7
37	200AYZS250-12-15-6	250	12	960	15	68.1
38	200AYZS250-15-18-6	250	15	960	18	69
39	200AYZS250-20-22-4	250	20	1450	22	72.9
40	200AYZS250-25-30-4	250	25	1450	30	66.8
41	200AYZS250-30-37-4	250	30	1450	32	69.3
42	200AYZS250-40-45-4	250	40	1450	45	71.2
43	200AYZS250-45-55-4	250	45	1450	55	69.7
44	200AYZS250-55-75-4	250	55	1450	75	62.4
45	200AYZS250-65-90-4	250	65	1450	90	65.6
46	200AYZS300-10-15-6	300	10	960	15	72.7
47	200AYZS300-12-18.5-6	300	12	960	18.5	70.7
48	200AYZS300-15-22-4	300	15	1450	22	74.3
49	200AYZS300-20-30-4	300	20	1450	30	72.7
50	200AYZS300-25-37-4	300	25	1450	37	73.6
51	200AYZS300-30-45-4	300	30	1450	45	72.7
52	200AYZS300-40-55-4	300	40	1450	55	74.3
53	200AYZS300-50-75-4	300	50	1450	75	68.1
54	200AYZS300-55-75-4	300	55	1450	75	74.9
55	200AYZS300-60-90-4	300	60	1450	90	68.1
56	200AYZS350-8-15-6	350	8	960	15	63.6
57	200AYZS350-11-18.5-6	350	11	960	18.5	70.9
58	200AYZS350-13-22-4	350	13	1450	22	70.4
59	200AYZS350-17-30-4	350	17	1450	30	67.6
60	200AYZS350-22-37-4	350	22	1450	37	66.7
61	200AYZS350-28-45-4	350	28	1450	45	69.8
62	200AYZS350-35-55-4	350	35	1450	55	71.4
63	200AYZS350-42-75-4	350	42	1450	75	66.8
64	200AYZS350-50-90-4	350	50	1450	90	66.2
65	200AYZS350-60-110-4	350	60	1450	110	65
66	200AYZS400-9-18.5-6	400	9	960	18.5	66.3
67	200AYZS400-11-22-6	400	11	960	22	68.1
68	200AYZS400-15-30-4	400	15	1450	30	68.1
69	200AYZS400-20-37-4	400	20	1450	37	69.3
70	200AYZS400-25-45-4	400	25	1450	45	71.2
71	200AYZS400-30-55-4	400	30	1450	55	69.9
72	200AYZS400-40-75-4	400	40	1450	75	68.4
73	200AYZS400-48-90-4	400	48	1450	90	68.4
74	200AYZS400-55-110-4	400	55	1450	110	64.1
75	200AYZS400-65-132-4	400	65	1450	132	63.1
76	250AYZS500-12-30-6	500	12	960	30	64.1
77	250AYZS500-15-37-4	500	15	1450	37	65
78	250AYZS500-20-45-4	500	20	1450	45	71.2
79	250AYZS500-25-55-4	500	25	1450	55	72.9
80	250AYZS500-30-75-4	500	30	1450	75	64.1
81	250AYZS500-35-90-4	500	35	1450	90	62.3
82	250AYZS500-40-90-4	500	40	1450	90	71.2
83	250AYZS600-10-30-6	600	10	960	30	64.1
84	250AYZS600-13-37.0-4	600	13	1450	37	67.6
85	250AYZS600-16-45.0-4	600	16	1450	45	68.4
86	250AYZS600-22-55.0-4	600	22	1450	55	76.9
87	250AYZS600-27-75.0-4	600	27	1450	75	69.2
88	250AYZS600-32-90.0-4	600	32	1450	90	68.4
89	250AYZS600-40-110-4	600	40	1450	110	69.9
90	250AYZS600-48-132-4	600	48	1450	132	69.9
91	250AYZS600-55-160-4	600	55	1450	160	66.1
92	300AYZS800-10-37-6	800	10	960	37	69.3
93	300AYZS800-13-45-6	800	13	960	45	74.1
94	300AYZS800-16-55-6	800	16	960	55	74.6
95	300AYZS800-20-75-4	800	20	1450	75	68.4
96	300AYZS800-26-90-4	800	26	1450	90	74.1
97	300AYZS800-32-110-4	800	32	1450	110	74.6
98	300AYZS800-37-132-4	800	37	1450	132	71.9
99	300AYZS800-42-160-4	800	42	1450	160	67.3
100	300AYZS1000-8-37-6	1000	8	960	37	69.3
101	300AYZS1000-10-45-6	1000	10	960	45	71.2
102	300AYZS1000-12-55-6	1000	12	960	55	69.9
103	300AYZS1000-16-75-4	1000	16	1450	75	68.4
104	300AYZS1000-20-90-4	1000	20	1450	90	71.2
105	300AYZS1000-25-110-4	1000	25	1450	110	72.9
106	300AYZS1000-30-132-4	1000	30	1450	132	72.9
107	300AYZS1000-35-160-4	1000	35	1450	160	70.1
108	350AYZS1200-7-37-6	1200	7	960	37	72.8
109	350AYZS1200-9-45-6	1200	9	960	45	76.9
110	350AYZS1200-11-55-6	1200	11	960	55	66.7
111	350AYZS1200-13-75-4	1200	13	1450	75	72.7
112	350AYZS1200-17-90-4	1200	17	1450	90	76.9
113	350AYZS1200-22-110-4	1200	22	1450	110	75.8
114	350AYZS1200-26-132-4	1200	26	1450	132	72.1
115	350AYZS1200-30-160-4	1200	30	1450	160	67.3
116	350AYZS1200-35-200-4	1200	35	1450	200	71.5
117	350AYZS1500-5.5-37-6	1500	5.5	960	37	74.8
118	350AYZS1500-7-45-6	1500	7	960	45	78.7
119	350AYZS1500-9-55-6	1500	9	960	55	70.5
120	350AYZS1500-11-75-4	1500	11	1450	75	74.8
121	350AYZS1500-14-90-4	1500	14	1450	90	74.3
122	350AYZS1500-17-110-4	1500	17	1450	110	74.3
123	350AYZS1500-20-132-4	1500	20	1450	132	72.9
124	350AYZS1500-25-160-4	1500	25	1450	160	75.1
125	350AYZS1500-30-200-4	1500	30	1450	200	72.1
126	350AYZS1500-35-220-4	1500	35	1450	220	76.5
127	400AYZS1800-10-90-6	1800	10	960	90	64.1
128	400AYZS1800-12-110-6	1800	12	960	110	63
129	400AYZS1800-15-132-6	1800	15	960	132	65.6
130	400AYZS1800-18-160-4	1800	18	960	160	64.9
131	400AYZS1800-24-200-6	1800	24	960	200	69.2
132	400AYZS1800-26-220-6	1800	26	960	220	68.2
133	400AYZS1800-30-250-6	1800	30	960	250	69.2
134	400AYZS1800-32-280-4	1800	32	1450	280	68.2
135	400AYZS1800-35-315-4	1800	35	1450	315	64.1
136	400AYZS2000-9-90-6	2000	9	960	90	64.1
137	400AYZS2000-11-110-6	2000	11	960	110	64.1
138	400AYZS2000-14-132-6	2000	14	960	132	68
139	400AYZS2000-17-160-6	2000	17	960	160	68.1
140	400AYZS2000-22-200-6	2000	22	960	200	70.5
141	400AYZS2000-24-220-6	2000	24	960	220	69.9
142	400AYZS2000-28-250-6	2000	28	960	250	71.8
143	400AYZS2000-30-280-4	2000	30	1450	280	71.2
144	400AYZS2000-32-315-4	2000	32	1450	315	65.1
145	500AYZS2200-8-90-6	2200	8	960	90	62.7
146	500AYZS2200-10-110-6	2200	10	960	110	64.1
147	500AYZS2200-12-132-6	2200	12	960	132	64.1
148	500AYZS2200-15-160-6	2200	15	960	160	66.1
149	500AYZS2200-20-200-6	2200	20	960	200	70.5
150	500AYZS2200-22-220-6	2200	22	960	220	70.5
151	500AYZS2200-25-250-6	2200	25	960	250	70.5
152	500AYZS2200-28-280-4	2200	28	1450	280	70.2
153	500AYZS2200-30-315-4	2200	30	1450	315	69.6
